Monolithic Web Application

Monolithic web project AWS

Class 11th Worked on Monolithic Web-application

Requirement: Create a simple monolithic web application using python further i will converted it into 3 tier architecture

Require Sign-up and Sign-in pages and signup page  (Name,Mobilenumber,password and user image should be taken,data will be stored in my sql database image should be stored in the same root folder.

Tech stack:

Backend: Python(Flask for simplicity)

Frontend: HTML/CSS(basic forms)

Database: Mysql

Image storage: Stored in the root static/images/ folder of the project

Step1:Create one Windows VM

Step2:After Launch completed ,need attached security key using below navigation

Step3:Upload private key pair which you downloaded and then click Decrypt Password,it will generate the password connect VM ware

Step4:Below password generated ,this auto generated Privatekey and public key combination generate password

Step5:Follow below chatgpt

https://chatgpt.com/share/680a6197-31c0-8008-bd19-b051a105a25b

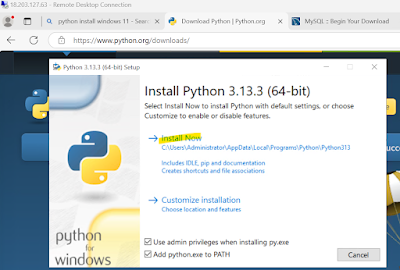

Step6: Search Google test Python install window click below url while download No thank just download

MySQL :: Begin Your Download

Installation steps:
While installation choose Full (Workbench is required that is database editor)

After Click Next, Next

Given Password Root password

Click Next, Next

Click Execute

Click Finish and Cancelled

Step7:Go window enter Mysql work beach ,it uses for query sql editor table access

After installation remove default instance connection which there

select and Delete existing root connection select delete connection, Need to give connection manually

Given your root/password connection test connection and then click ok

Step8:Above icon Create schema click apply, apply Finish

Step9: Select schema tab below ,create tables

Step10: Need to create below Folders in  VM C:\

OnlineLibrary/

│

├── app.py                         # Main Flask application

├── config.py                      # DB config and connection settings

├── requirements.txt               # Python dependencies

│

├── templates/                     # HTML templates

│   ├── signup.html

│   ├── signin.html

│   └── welcome.html

│

├── static/                        # Static files (CSS, images, JS)

│   ├── css/

│   │   └── style.css              # Your custom styling

│   └── images/                    # Uploaded user images

 Change below Config file

Step11:Python need to install ,Google text search Python install window 11



Step12:

requirements.txt

Flask

Flask-MySQLdb

Werkzeug

Step13:After completion required flash installation, need execute final step phyton script run

We can copy the files or file text to your files using below url

https://drive.google.com/drive/folders/1UU3FBE2QjRdsb9KuvNfigkm6JAVKSzBa?usp=drive_link

Step14:After execute below, click url ctl or else copy the url past to the browser

Step15:Login page came successfully

Step16:Click signup Give your details and click signup,

Step17:Afer you signup, get message Registration successful please login and check once

you need check in database data inserted or not ,you see below records inserted

 Step18: Login once with your credentials

Our Project Gobal accessing

Step1: Need to execute some commands in the project folder

python -m venv venv

venv\Scripts\activate

pip install waitress

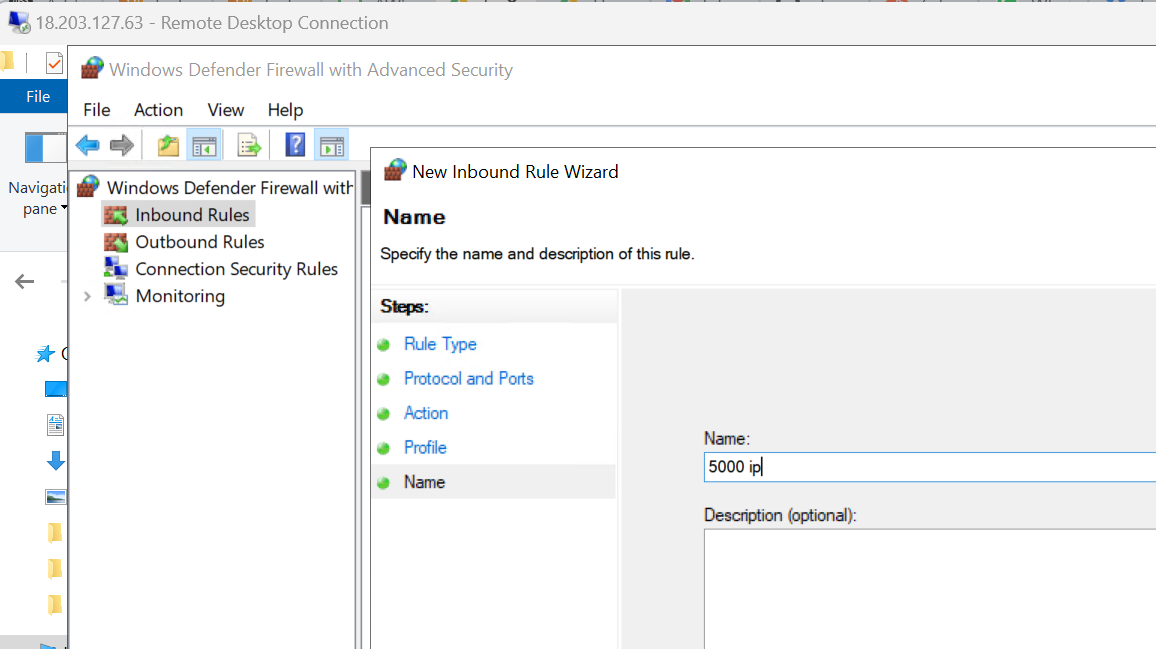

Step2:Allow Access in Firewall  Open Windows Defender Firewall ➜ Inbound Rules ➜ Add a New Rule :Type: Port,Port: 5000,Allow connection,Apply to Domain, Private, Public

Name: Flask Web App (Name as you wish) , I have given 5000 ip

Step3: After port added in the firewall ,execute the python app.py  command again ,now it is  start started

Step4:Now Access your application Globally with our public ip and port number ,while you create VM Public IP accessed for that ,take that ip entension with port number

You see below sign in page successfully



Step5:After login with old user ,login successfully

Step6:Now you signup new user ,with details click signup



Step7:Registered successfully getting screen below

Step8:Check once Mysql table level data stored or not for new user



You see above new regarding inserted successfully, this is the way Monolithic Simple project build

Monolithic Architecture: Everything Frontend (UI) ,Back-end(logic),Database Access  is combined into one big application called monolithic.

We have Three Layer of approach

 1.Presentation Layer ->Frontend(HTML/CSS/Javascript)

 2.Application Layer ->Backend (Python Flask APIs)

 3.Data Layer ->Database (Mysql)

                          --Thanks

Ec2 part2

Ec2 part2

 Class 10th Elastic compute cloud Apr 23rd

• Load Balancer
• Target groups
• Launch Templates
• Auto scaling

Step1: VPC Created

Created One VPC  with CIDR block 10.0.0.0/22 that means 32-22=10  ,Power(2,10)=1024 Subnet Ips we can able create

Step2:We have created 6 subnets 3 for public and 3 for private for above VPC, with different available zones.

Step3:Create two route table private/public subnet attached to associate subnets

Step4:Click  all your public and private subnet edit subnet check enable auto-assign public and save

Step5: Need to create one internet gateway and attached our VPC

Step6:

What is the ELB?

Elastic load balancing automatically distributes incoming application traffic access multiple targets,such as amazon instances,container, IP addresses,lambda functions and virtual appliances.

https://google.com search(user)-->Webserver-->database

Web server has capacity limited(if request came more than capacity system will crash,so the reason implemented load balancer

user -->loadbalacer->Webserver -->Webserver -->database



the load balancer equal to distributed multiple webserver instances

Elastic Load balancing types

1.Application load balancer (commonly used ,round robin method distribute)

2.Network load balancer

3.Gateway load balancer

4.Classic load balancer (old one)

Target groups :we have registered instance to the target group which is you have created

Target groups route requests to one or more registered targets, such as ec2 instances, using the protocol and port number that you specify.

You can register a target with multiple target groups. You can configure health checks on  a per targetgroup basis.

Health checks are performed on all registered to a target group that is specified in a listener rule for your load balancer

Practical

Step7: Need to attach internet gateway to private /public Route table also.

Step8:We have to three instance created,

Step9: Advance details and scrip user data Apache data  and click launch

#!/bin/bash -xe

# STEP1 -Updates

yum -y update

# STEP2 -Begin Configuration

yum -y install httpd

systemctl enable httpd

systemctl start httpd

# STEP3 -Customer Web Page

echo "<h1> Welcome to Website1</h1>" >> /var/www/html/index.html

Step10: Three instances created with three different zone due high availability

VM_Inst_website1,VM_Inst_website2,VM_Inst_website3 and modify iam security attach admin for all 3 VM's

Step11:

Step12:Need to Create Target group and attached

Our three instance check all click include as pending as below

and click create target group

After registered Target group inital it will consequently health check ,while health 200 success code need get response, if not our instance is not healthy

Every 30 seconds target do the health for the instance if any issue on instance that server went to

 unhealth state

Create Load balancer  Application Load Balancer

Step1:



select default security group and ,select out Target group

Click load balancer



Step2: Take the DNS name CCIT-LBCER-137143466.eu-west-1.elb.amazonaws.com load balancer test,

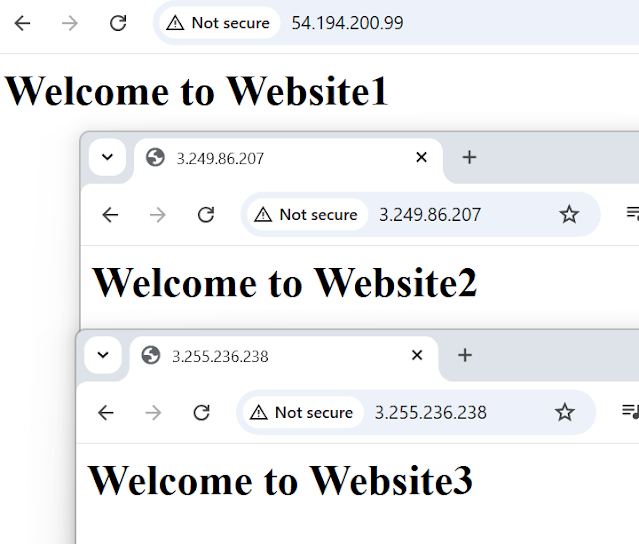

as you see below same website url connected ,different sites, this way load balancer will work

Step3: Just for test stop the one instance and then need to target group available zone

Step4:As you see below one avaaille zone went unsed state

Step5:Even though our website available to two zone

                                                                           Autoscaling

(whenevery one instance was down, autscaling automatically create on instance and attach to target gropd)

Autoscaling is monitoring your applications automatically adjust the capacity to maintain steady, predicatable performance at the lowest possible cost.

Using AWS auto scaling, it's easy to setup application scaling for multiple resources across multiple service in minutes

It's easy to get stared with auto scaling using the AWS management console,command line interface (CLI), or SDK

AWS Auto scaling is available at no additional charge .You pay only of the AWS resources needed to run your applications and amazon cloud watch monitoring fees.

Type of Scaling

• Vertical Scaling
•  Horizontal Scaling

Vertical scaling means increasing the capacity of the existing resource .Increasing RAM capacity, adding additional volumes, change  the instance family under this category

Note: Vertical scaling need change capacity for instance need downtime/stop instance

Horizontal

(For Particular time you want required instance capacity need to increase with out downtime ,we implement Horizontal downtime)

Horizontal scaling means adding additional nodes or machines to your infrastructure as per demand.

we can setup automation to this scaling.

Launch Template

Create Template  choose the instance type t2.micro free tier

Additional details,pls User data give below information

#!/bin/bash -xe

# STEP1 -Updates

yum -y update

# STEP2 -Begin Configuration

yum -y install httpd

systemctl enable httpd

systemctl start httpd

# STEP3 -Customer Web Page

echo "<h1> Welcome to Blog</h1>" >> /var/www/html/index.html



Not to change anything click Create lunch template

Step6: Need to configure auto scaling group need attach the launch template which is we have created

autoscaling create the instance based which specified on the launch template

Click Next

Choose your VPC and select all private subnet click next

Attach your existing loadbalancer

click Next

Enter how many instances you need

Give 3 click next >add notification >click next -->add tag >click next

Step7:

Click create autoscaling group

Once create Autoscaling group ,Three instance automatically created

As you above it was created three availability zones, we have specified launch template

and autoscaling show three availability zones

As you see using public IP , all http pages are opened

All Instance we have put private, we have put only loadbalacer public

As see Target groups are health state.

Test Auto scaling now, terminate one instance manually , need check is will automatically create instance or not using autoscaling

Terminate one instance

 Terminated done

You see automatically one more instance created by autoscaling ,After 300 seconds

 You see our webpage all also automatically came ,autoscaling created instance with same configuration and out webpage

Below out autoscaling min once created max 3 instance automatically

Autoscaling ,We can Instance CPU utalinzation also based on target value 50 % more, it will create

new instance automatically and distributed the load balance

Deletion

Terminate the instance

delete autoscaling

delete loadbalance

delete targetgroups
