VPC part2

Class 42nd AWS VPC June 11th

IP Address division Task

Create a vpc with 512 IPs CIDR range

1.Divide the VPC CIDR to 4 subnets with 128 IPs.

2.Divide the VPC CIDR to 4 subnets with 64,64,128,256 IPs

Second task completed successfully.

Task2	Subnets	CDIR Block	Subnet range	Subnet range
	Subnet1	10.0.2.0/23	10.0.2.0/26	10.0.2.63
	Subnet2		10.0.2.64/26	10.0.2.127
	Subnet3		10.0.2.128/25	10.0.2.255
	Subnet4		10.0.3.0/24	10.0.3.255

VCP Component

Create internet gateway

After create cci-igw, attached to our vpc

Route tables

While created vpc automatically one route table created default ,if you are not specified any route table condition by default all our network operation will perform with that default route table.

Create our own public route table

Step1:

Step2:

After created ,need specify some rule to the route table

Which is we have created subnet -->through route table -->access internet gate called as public subnet

subnet --> called as private subnet

Step3:

Create one more Route table for private

Step1:Not give any rules to internet gate way for private route table that means no internet access for this route table

Security Group Setup

Step1:

When every you create vpc automatically one security group created, you select your security group using your VPC ID ,edit give any name

Edit the inbound rules, delete the existing security group ,add one rule with all traffic click save rules

Practical with Server Behavior, attached VPC subnet

Step1: Created one window machine ,select existing vpc and public subnet

After created ,Window machine need to get the password connect >Action >security >get password

upload downloaded .pem key file save the password

Step2: Using public ip 54.246.26.83 RDP connected and also able access internet .

Private subnet instance creation steps

Step1: Create one instance ccit-private

Step2: try to connect instance local RDP ,getting error

ccitprivate subnet edit check enable auto-assign public IPV4 address click save

Step3:
This Private Subnet Route table internet gateway not enabled to subnet ,so using private ip with in AWS environment i.e with in ec2 instance( for ccitpublic), try to connect using private ip

with private connected , but internet unable to acces as you see below screen shot

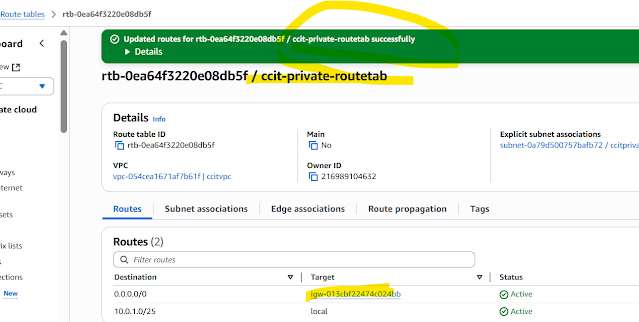

Step4: If you want internet for the private subnet ,simple attach the internet way to the private subnet

See now internet coming in private instance also

--Done

What are the IPV4 & IPV6 addresses ?

0 0 0 0

8bit 8bit8bit8bit

What is IPV4?

An IPV4 (internet protocol version 4) address is a number label assigned to each device connected to a computer network that uses the internet protocol for communication

It is a 32 bit ip address, and we can generate a maximum 4 billion+ addresses with this IPv4.

Each block in this IP address called Octets and each Octet can hold maximum 8 bit memory. 4(Octets)*8(bits)=32. That’s why it called 32 bit ip address.

The Aws Free Tier for Ec2 will include 750 hours of public IPV4 address usage per month for the first 12 months,effective 01-Feb-24

0.0.0.0 ip 255*255*255*255 = 4,228,250,625 400cores (it is very less)

For instance as you see we have Public 54. 246.26.83,3.253.84.108 charged and private are free

What is IPV6 ?

0 0 0 0

16bit 16bit16bit16bit

.An IPV6(inter protocol version 6) address I alpha numerical label assigned to each device connected to a computer network that uses the internet protocol for communication

It is a128 but ip address,and we can generate a maximum 3 trillion+ addresses with this IPV6

Each block in this IP address can hold maximum 16 bits memory.8(blocks)*16(bits)=128.That’s why it is called 128 bit ip address.

The cost of the public IPV6 addresses in AWS is currenly free,due to their huge availability

VPC (Elastic Ips,NAT Gateways,VPC Peering ,Security groups)

Elastic Ip: It fixed IP giving to you instead of floating ip.

An Elastic IP address is a static public IPv4 address associated with you AWS account in a specific region.

Unlike an auto-assigned public IP address, an Elastic IP address is preserved after you stop and start you instance in a virtual private cloud(VPC).

It is associated with you AWS account,not a specific instance.you can reassign an Elastic IP address from one instance to another

Useful for maintaining a consistent IP address for external resources to reach your instances.

An Elastic IP address is for use in a specific region only, and canot be moved to a different region

The default quota of Elastic IPs per region is 5 and it is adjustable

AWS charges $0.005 per/hour/elastic or public IP.

this Elastic IP to create >allocate IP Address click allote.

Nat Gateway: (using nat gateway able to connect internet in private instance, with that

A Nat gateway is a network Address translation (NAT)service.

You can user a NAT gateway so that instance in a private subnet can connect to services outside you VPC but external service cannot initiate a connection with those instances
