Saturday, May 24, 2025

Bash Scripting

Class 30th Jenkins May 24th
What is Script and why it is?
Type of Scripting language
Understand "Shebang(#!)""
Difference Between sh shell.sh,bash shell.sh, &./Shell.sh in Bash scripting.
Working with Bash scripting
Logical operators (AND(&&), OR(||)
File operations
Loops(For,while,Until)
Functions
Working with processes

Shell script: shell script is series of command, Amazon Linux (they combined bash and shell inherited )

so it will support what every give command whether bash/shell

Amazon linux

[ec2-user@ip-10-0-1-88 ~]$ cd /bin

[ec2-user@ip-10-0-1-88 bin]$ls -lrt

lrwxrwxrwx 1 root root 4 May 28 02:01 sh -> bash

Debian Linux (separate there)

admin@ip-10-0-0-210:~$ cd /bin

admin@ip-10-0-0-210:/bin$ ls -lrt

-rwxr-xr-x 1 root root 1265648 Mar 29 2024 bash

lrwxrwxrwx 1 root root 4 Jan 5 2023 sh -> dash

Understand shebang(#!)

A shebang(#!)is a special directive at the top of a script that ells the system which interpreter(shell) to use when executing the script.

#!/bin/bash -->Use Bash shell to execute the script

#!/bin/sh -->Use sh shell(Could be dash on some systems).

#!/usr/bin/python3-->Use Python 3 interpreter.

Practical 1

Step1:

Amazon Linux

Example Bash script using shebang

#!/bin/bash

echo "Hello, Cloud computing!"

[ec2-user@ip-10-0-1-88 ccit]$ sh hello.sh

Hello cloud computing

[ec2-user@ip-10-0-1-88 ccit]$ bash hello.sh

Hello cloud computing

[ec2-user@ip-10-0-1-88 ccit]$ ./hello.sh

-bash: ./hello.sh: Permission denied

Getting error because of it is not execute mode ,give permission using chmod

[ec2-user@ip-10-0-1-88 ccit]$ ls -lrt

-rw-rw-r-- 1 ec2-user ec2-user 41 May 31 09:07 hello.sh

[ec2-user@ip-10-0-1-88 ccit]$ chmod +x hello.sh

[ec2-user@ip-10-0-1-88 ccit]$ ls -lrt

-rwxrwxr-x 1 ec2-user ec2-user 41 May 31 09:07 hello.sh

Now is is allowing because mode was changed

[ec2-user@ip-10-0-1-88 ccit]$ ./hello.sh

Hello cloud computing

Step2:Changed script in bash to sh ,See here no difference shell , if you are give ./ this and try to execute interpreter will check what shebang used in the script

[ec2-user@ip-10-0-1-88 ccit]$ cat hello.sh

#!/bin/sh

echo "Hello cloud computing"

[ec2-user@ip-10-0-1-88 ccit]$ sh hello.sh

Hello cloud computing

[ec2-user@ip-10-0-1-88 ccit]$ ./hello.sh

Hello cloud computing

[ec2-user@ip-10-0-1-88 ccit]$ bash hello.sh

Hello cloud computing

Step3: Array type script executing amazon linux and debian linux

amazon linux

[ec2-user@ip-10-0-1-88 ccit]$ cat hello.sh

#!/bin/sh

arr=(one two three)

echo ${arr[0]}

[ec2-user@ip-10-0-1-88 ccit]$ sh hello.sh

one

Debian Linux

Getting error

admin@ip-10-0-0-210:~/ccit$ cat hello.sh

#!/bin/sh

arr=(one two three)

echo ${arr[0]}

admin@ip-10-0-0-210:~/ccit$ sh hello.sh

hello.sh: 2: Syntax error: "(" unexpected

admin@ip-10-0-0-210:~/ccit$ bash hello.sh

one

admin@ip-10-0-0-210:~/ccit$ ./hello.sh

-bash: ./hello.sh: Permission denied

After given permission, after changed script sh to bash , shell no arrey concept only has bash

admin@ip-10-0-0-210:~/ccit$ chmod +x hello.sh

admin@ip-10-0-0-210:~/ccit$ ls -lrt

total 4

-rwxr-xr-x 1 admin admin 48 May 31 09:34 hello.sh

admin@ip-10-0-0-210:~/ccit$ cat hello.sh

#!/bin/bash

arr=(one two three)

echo ${arr[0]}

See below with bash both working ,if you explicitly run shell sh it will through error

admin@ip-10-0-0-210:~/ccit$ ./hello.sh

one

admin@ip-10-0-0-210:~/ccit$ bash hello.sh

one

admin@ip-10-0-0-210:~/ccit$ sh hello.sh

hello.sh: 2: Syntax error: "(" unexpected

I have changed back to sh ,see below sh interpreter trying run shell for the array it will not support getting ,previously same script run with bash.

admin@ip-10-0-0-210:~/ccit$ cat hello.sh

#!/bin/sh

arr=(one two three)

echo ${arr[0]}

admin@ip-10-0-0-210:~/ccit$ ./hello.sh

./hello.sh: 2: Syntax error: "(" unexpected

Practical 2

Inputs reading from the script

[ec2-user@ip-10-0-1-88 ccit]$ cat hello.sh

#!/bin/bash

echo "Please enter your name"

read uname

echo "The supplied user name is:$uname"

[ec2-user@ip-10-0-1-88 ccit]$ ./hello.sh

Please enter your name

Raja

The supplied user name is:Raja

We can given directly using below script

[ec2-user@ip-10-0-1-88 ccit]$ cat hello.sh

#!/bin/bash

read -p "Please enter your name:" $uname

[ec2-user@ip-10-0-1-88 ccit]$ ./hello.sh

Please enter your name:Suresh

Practical 3 : Athematic Operations

[ec2-user@ip-10-0-1-88 ccit]$ cat hello.sh

#!/bin/bash

num1=10

num2=5

echo "Sum of the numbers:"$((num1+$num2))

[ec2-user@ip-10-0-1-88 ccit]$ ./hello.sh

Sum of the numbers:15

[ec2-user@ip-10-0-1-88 ccit]$ cat hello.sh

#!/bin/bash

num1=10

num2=5

echo "Sum of the numbers:"$((num1+$num2))

echo "Substraction of the numbers:"$((num1-$num2))

echo "Multiplication of the numbers:"$((num1*$num2))

echo "Division numbers:"$((num1/$num2))

echo "Sum of the numbers:"$((num1%$num2))

[ec2-user@ip-10-0-1-88 ccit]$ ./hello.sh

Sum of the numbers:15

Substraction of the numbers:5

Multiplication of the numbers:50

Division numbers:2

Sum of the numbers:0

Practical 4 :

Conditional operations

[ec2-user@ip-10-0-1-88 ccit]$ cat hello.sh

#!/bin/bash

string1="ccit"

string2="ccit"

if [[ $string1==$string2 ]]; then

echo "both are same "

else

echo "both are not same"

[ec2-user@ip-10-0-1-88 ccit]$ ./hello.sh

both are same

Practical 4:

if you are passing any value to variable that variable will change automatically

Number

Equal

[ec2-user@ip-10-0-1-88 ccit]$ cat hello.sh

#!/bin/bash

string1=5

string2=10

if [[ $string1 -eq $string2 ]]; then

echo "both are same "

else

echo "both are not same"

[ec2-user@ip-10-0-1-88 ccit]$ ./hello.sh

both are not same

Not Equal

[ec2-user@ip-10-0-1-88 ccit]$ cat hello.sh

#!/bin/bash

string1=5

string2=10

if [[ $string1 -ne $string2 ]]; then

echo "both are not equal "

else

echo "both are same"

[ec2-user@ip-10-0-1-88 ccit]$ ./hello.sh

both are not equal

Note:

String ==,!=

num -eq , -ne

less-than - -lt -le

Greater than -gt -ge

and &

or ||

And operator and OR Operator

[ec2-user@ip-10-0-1-88 ccit]$ cat hello.sh

#!/bin/bash

echo "Enter username"

read uname

echo "Enter password"

read pass

if [[ $uname == "ccit" && $pass == "123" ]]; then

echo "Valid user"

else

echo "Invalid user"

[ec2-user@ip-10-0-1-88 ccit]$ ./hello.sh

Enter username

ccit

Enter password

123

Valid user

[ec2-user@ip-10-0-1-88 ccit]$ ./hello.sh

Enter username

ccit

Enter password

345

Invalid user

OR Operator

if [[ $uname == "ccit" || $pass == "123" ]]; then

[ec2-user@ip-10-0-1-88 ccit]$ ./hello.sh

Enter username

ccit

Enter password

345

Valid user

[ec2-user@ip-10-0-1-88 ccit]$ ./hello.sh

Enter username

raja

Enter password

123

Valid user

[ec2-user@ip-10-0-1-88 ccit]$ ./hello.sh

Enter username

raja

Enter password

Invalid user

File exist or not current directory

[ec2-user@ip-10-0-1-88 ccit]$ cat ./hello.sh

#!/bin/bash

filepath="./file.txt"

if [[ -e $filepath ]]; then

echo "file exists"

else

echo "file does not exists"

[ec2-user@ip-10-0-1-88 ccit]$ ./hello.sh

file does not exists

[ec2-user@ip-10-0-1-88 ccit]$ touch file.txt

[ec2-user@ip-10-0-1-88 ccit]$ ./hello.sh

file exists

Looping statements

For Loop

for i (1..23);

done

[ec2-user@ip-10-0-1-88 ccit]$ cat hello.sh

#!/bin/bash

for i in {1..5}; do

echo "the value is :"$i

done

[ec2-user@ip-10-0-1-88 ccit]$ ./hello.sh

the value is :1

the value is :2

the value is :3

the value is :4

the value is :5

while Loop

[ec2-user@ip-10-0-1-88 ccit]$ cat hello.sh

#!/bin/bash

count=0

while [[ $count -lt 10 ]]; do

echo "the values is :"$count

count=$((count+1))

done

[ec2-user@ip-10-0-1-88 ccit]$ ./hello.sh

the values is :0

the values is :1

the values is :2

the values is :3

the values is :4

the values is :5

the values is :6

the values is :7

the values is :8

the values is :9

For -le lessthan equal to

while [[ $count -le10 ]]; do

[ec2-user@ip-10-0-1-88 ccit]$ ./hello.sh

the values is :0

the values is :1

the values is :2

the values is :3

the values is :4

the values is :5

the values is :6

the values is :7

the values is :8

the values is :9

the values is :10

--Thanks

Wednesday, May 21, 2025

Jenkins part9

Class 29th Jenkins May 21st

Jenkins part is over final Project below
->Why is the deployment and why it is ?

->Deployment flow

->Environment Setup

->What precautions should we take before deployment?

->Jenkins End-to-End Project: Practical

We will take one Java Project from Git, deploy into the application (tomcat) container

->Why is the deployment and why it is ?

Deployment : Deployment refers to the process of installing a web application on a server.

(simple what every we build .jar/.war application file simple copying to application servers called deployment,but now days no one not do direct copy, we do deployment with tools)

Why Deployment:

the main Reasons of the deployment are:

.Installation of a web-application on web-server.

.Adding new features to the application and fixing bugs.

.Enhancing existing features and improving performance.

.Breakdown large applications into microservices for better scalability and maintainability.

Practical

Deployment Flow

Step1:

Need to create two Instances Jenkins , tomcat and nexus

Jekins Server

[root@ip-10-0-0-81 ~]# yum install -y java-17-amazon-corretto-devel git

[root@ip-10-0-0-81 ~]# sudo wget -O /etc/yum.repos.d/jenkins.repo \ https://pkg.jenkins.io/redhat-stable/jenkins.repo

[root@ip-10-0-0-81 ~]# sudo rpm --import https://pkg.jenkins.io/redhat-stable/jenkins.io-2023.key

[root@ip-10-0-0-81 ~]# sudo yum install jenkins

click y

[root@ip-10-0-0-81 ~]# systemctl start jenkins

Connect jenkins public ip http://54.195.135.216:8080/

[root@ip-10-0-0-81 jenkins]# cat /var/lib/jenkins/secrets/initialAdminPassword
dd9c30c4b0b2451098c09233c9d60ab9
click initiated create user admin/ required password

Tomcat server :tomcat-users.xml using for some roles to add, '56d' d means delete

Take public ip for the server

tomcat.sh script

yum install java-17-amazon-corretto -y

wget https://dlcdn.apache.org/tomcat/tomcat-11/v11.0.7/bin/apache-tomcat-11.0.7.tar.gz

(This is not final one you main url check latest version and download)

tar -zxvf apache-tomcat-11.0.7.tar.gz

sed -i '56 a\<role rolename="manager-gui"/>' apache-tomcat-11.0.7/conf/tomcat-users.xml

sed -i '57 a\<role rolename="manager-script"/>' apache-tomcat-11.0.7/conf/tomcat-users.xml

sed -i '58 a\<user username="tomcat" password="ccit123" roles="manager-gui, manager-script"/>' apache-tomcat-11.0.7/conf/tomcat-users.xml

sed -i '59 a\</tomcat-users>' apache-tomcat-11.0.7/conf/tomcat-users.xml

sed -i '56d' apache-tomcat-11.0.7/conf/tomcat-users.xml

sed -i '21d' apache-tomcat-11.0.7/webapps/manager/META-INF/context.xml

sed -i '22d' apache-tomcat-11.0.7/webapps/manager/META-INF/context.xml

sh apache-tomcat-11.0.7/bin/startup.sh

[ec2-user@ip-10-0-1-93 ~]$ sudo -i

[root@ip-10-0-1-93 ~]# vi tomcat.sh

[root@ip-10-0-1-93 ~]# sh tomcat.sh

Tomcat started.
[root@ip-10-0-1-93 ~]#

Step2: Click Manager app after open the below url ,Login with password ,mentioned above script

http://3.255.200.138:8080/

Below is the web application manager ,for this manager container ,we will hosting our application

Step3:Git project simple html webpage ,We plan deploy this into tomcat

https://github.com/cloudcomputingintelugu/ccitwebsite-java

We need create one job in Jenkis Click ok

Jobname: ccitpipe-prj

Step4: Prior we need configure maven given any name ccit-mvn click save

Dashboard> Manage Jenkins > Tools

For Containerization we need add one plugin

Dashboard> Manage Jenkins > Plugins >Available plugins

enter text Deploy to Container click install (this artifact upload)

Pipeline stage view click install (This for view good )
Nexus Artifact uploader click install(if required we can choose s3 artifact uploader)

Step5:add credentials

Dashboard> Manage Jenkins >Credentials Click system >Click Global credentials (unrestricted)

and Click add credentials

Click Create, We can another way also while pipe scripts add there also we can supply the user and password,using pipline syntax script

now Java tomcat server not supported for .jar file to deploy , only support .war or .ear file only

Another way to pipeline syntax script

Simple Step : Deployment war/ear to container

Deploy War/Ear files :target/*war

Context patch :ccitwebsite (give any name)

Contaner : Tomcat :take latest version

Credential: tomat/ccit123 (which is you given script)

Tomcat URL : http://54.185.135.216:8080/ (tomcat url public ip)

Step6: job which added early yar

Jobname: ccitpipe-prj

Definition add below script and build

pipeline {

agent any

tools

{

maven 'ccit-mvn'

}

stages {

stage('git') {

steps {

git 'https://github.com/cloudcomputingintelugu/ccitwebsite-java.git'

}

stage('build') {

steps {

sh 'mvn clean package'

}

Step7: build success

After build success ,below you jenkins server this you artifacts myweb-0.0.1.war this you need to deploy(upload) in tomcat

[root@ip-10-0-0-81 target]# pwd

/var/lib/jenkins/workspace/ccitpipe-prj/target

[root@ip-10-0-0-81 target]# ls -lrt

total 4

drwxr-xr-x 4 jenkins jenkins 89 May 22 19:25 myweb-0.0.1

drwxr-xr-x 2 jenkins jenkins 28 May 22 19:25 maven-archiver

-rw-r--r-- 1 jenkins jenkins 4069 May 22 19:25 myweb-0.0.1.war

Click Job Pipline Generate syntax script text copy add this into out job pipline stage script

deploy adapters: [tomcat9(alternativeDeploymentContext: '', credentialsId: '732bd861-4be4-49a0-aba2-04a19991b198', path: '', url: 'http://3.255.200.138:8080/')], contextPath: 'ccitwebsite', war: 'target/*.war'

Step8: Click save and build

pipeline {

agent any

tools

{

maven 'ccit-mvn'

}

stages {

stage('git') {

steps {

git 'https://github.com/cloudcomputingintelugu/ccitwebsite-java.git'

}

stage('build') {

steps {

sh 'mvn clean package'

}

stage('tomcat') {

steps {

}

Step9: after build tomcat add and build success

Step10: See below screen shot which we have given name ccitwebsite came to tomcat site

We can able host multiple website also using this

Step11:Website hosted

Above sofar done we have placed through build artifacats moved from maven to tomcat

Now we plan to go with Nexus move from artifacts nexus to tomcat prior stop this webhost

Now page is open line this ,after stopped

HTTP Status 404 – Not Found

Type Status Report

Message The requested resource [/ccitwebsite/] is not available

Description The origin server did not find a current representation for the target resource or is not willing to disclose that one exists.

Apache Tomcat/11.0.7

Nexus

https protocol need run our website need to certificate ssl aws ssl certificate is free

We need purchase domain or Route 53

The service in AWS Console "Certificate manager "

>click List Certificate

Note :- While start nexus with micro amazon Linux facing below issue ,so Nexus minimum small Linux required it is chargeable

Launch a t2.micro EC2 with Amazon Linux 2 Failed

For Nexus minimum Linux small, with micro free tier facing issue [root@ip-10-0-1-241 bin]# ./nexus run

WARNING: ************************************************************

WARNING: Detected execution as "root" user. This is NOT recommended!

WARNING: ************************************************************

OpenJDK 64-Bit Server VM warning: INFO: os::commit_memory(0x000000078f550000, 1890254848, 0) failed; error='Not enough space' (errno=12)

# There is insufficient memory for the Java Runtime Environment to continue.

# Native memory allocation (mmap) failed to map 1890254848 bytes. Error detail: committing reserved memory.

# An error report file with more information is saved as:

# /opt/nexus/nexus-3.80.0-06/hs_err_pid7284.log

[root@ip-10-0-1-241 bin]# Connection to 3.249.223.100 closed by remote host.

Connection to 3.249.223.100 closed

Step1: Nexus Launching

Amazon linux

Instance type:t2.medium

Storge changed 20 GB

Step2:

Java Installation

[ec2-user@ip-10-0-0-244 ~]$ sudo -i

[root@ip-10-0-0-244 ~]# sudo yum install -y java-17-amazon-corretto-devel

Step3: Need Install Nexus in linux,for software always go with prior url

https://help.sonatype.com/en/download.html

and Download latest version above url take you latest Unix Nexus repository right click url save copy link address

[root@ip-10-0-0-244 ~]#wget https://download.sonatype.com/nexus/3/nexus-3.80.0-06-linux-x86_64.tar.gz

[root@ip-10-0-0-244 ~]#tar -zxvf nexus-3.80.0-06-linux-x86_64.tar.gz

Step4:User creation nexus

[root@ip-10-0-0-244 ~]# useradd nexus

[root@ip-10-0-0-244 ~]# ls -lrt

total 416436

drwxr-xr-x 3 root root 20 May 2 20:55 sonatype-work

-rw-r--r-- 1 root root 426428974 May 6 16:15 nexus-3.80.0-06-linux-x86_64.tar.gz

drwxr-xr-x 6 root root 94 May 23 10:23 nexus-3.80.0-06

[root@ip-10-0-0-244 ~]# chown nexus:nexus nexus-3.80.0-06 sonatype-work

[root@ip-10-0-0-244 ~]# ls -lrt

total 416436

drwxr-xr-x 3 nexus nexus 20 May 2 20:55 sonatype-work

-rw-r--r-- 1 root root 426428974 May 6 16:15 nexus-3.80.0-06-linux-x86_64.tar.gz

drwxr-xr-x 6 nexus nexus 94 May 23 10:23 nexus-3.80.0-06

Step5: In the nexus file need to change line number 27 run_as_user='' to run_as_user='nexus'

[root@ip-10-0-0-244 bin]# vi nexus

:set number

(set number command for vi script number display)

26 # user to execute as; optional but recommended to set

27 run_as_user='nexus'

[root@ip-10-0-0-244 opt]# mkdir -p /opt/sonatype-work/nexus3

Getting some permission issue

[root@ip-10-0-0-244 bin]# ./nexus start

-bash: /root/nexus-3.80.0-06/bin/nexus: Permission denied

[root@ip-10-0-0-244 bin]# mkdir -p /opt/nexus

[root@ip-10-0-0-244 bin]# mv /root/nexus-3.80.0-06 /opt/nexus/

[root@ip-10-0-0-244 bin]# cd /opt/nexus/nexus-3.80.0-06/bin

[root@ip-10-0-0-244 bin]# ./nexus start

Last login: Fri May 23 10:26:39 UTC 2025 on pts/0

mkdir: cannot create directory ‘/opt/nexus/nexus-3.80.0-06/../sonatype-work’: Permission denied

realpath: ‘/opt/nexus/nexus-3.80.0-06/../sonatype-work/nexus3’: No such file or directory

mkdir: cannot create directory ‘/log’: Permission denied

Starting nexus

/opt/nexus/nexus-3.80.0-06/bin/nexus: line 175: /nexus.pid: Permission denied

[root@ip-10-0-0-244 bin]# cd /opt/nexus/nexus-3.80.0-06

[root@ip-10-0-0-244 nexus-3.80.0-06]# ls

bin deploy etc jdk NOTICE.txt OSS-LICENSE.txt

[root@ip-10-0-0-244 opt]# chown -R nexus:nexus /opt/sonatype-work -R

[root@ip-10-0-0-244 opt]# sudo passwd nexus

Changing password for user nexus.

New password:

BAD PASSWORD: The password is shorter than 8 characters

Retype new password:

passwd: all authentication tokens updated successfully.

[root@ip-10-0-0-244 opt]# sudo chown -R nexus:nexus /opt/nexus

[root@ip-10-0-0-244 opt]# export NEXUS_DATA=/opt/nexus/sonatype-work

[root@ip-10-0-0-244 opt]# sudo su - nexus

Last login: Fri May 23 10:33:20 UTC 2025 on pts/0

[nexus@ip-10-0-0-244 ~]$ /opt/nexus/nexus-3.80.0-06/bin/nexus start

Starting nexus

[nexus@ip-10-0-0-244 ~]$ /opt/nexus/nexus-3.80.0-06/bin/nexus stop

Shutting down nexus

Stopping nexus running with pid 9738

Step6: Take the public Ip for the nexus instance default port 8081

[nexus@ip-10-0-0-244 opt]$ cat /opt/nexus/sonatype-work/nexus3/admin.password

88d25272-af46-45b7-adf9-ae42f115d1da

Click Sign in Next > Choose Radio Disable anonymous access >Click next

Step7: Click repository ,select maven2(hosted)

Step8: Give any repo name in nexus repository and select deployment policy Allow redeploy

Step9:Created one repository in nexus successfully

Step10: Jenkins pipline job, need to added nexus script step,with that take help of pipeline syntax script ,Select below options, Process url past nexus url with out http

10.1

10.2 add admin credential of nexus Groupid,version get it from the Git Pom.xml,Repository ccitrepo nexus repo name

10.3: Artifact id ,type of file war , war file location in jenkins server ,click generate pipline script

10.4 Git Project below pom.xml

Step11: ccitpipelinejob >Configuration > add below script ,nexus script you need replace with your pipline syntax script

pipeline {

agent any

tools

{

maven 'ccit-mvn'

}

stages {

stage('git') {

steps {

git 'https://github.com/cloudcomputingintelugu/ccitwebsite-java.git'

}

stage('build') {

steps {

sh 'mvn clean package'

}

stage('nexus') {

steps {

deploy adapters: [tomcat9(alternativeDeploymentContext: '', credentialsId: '8cf5a8fa-814b-4f44-9834-510bd831b76e', path: '', url: 'http://3.250.85.185:8080/')], contextPath: 'ccitwebsite', war: 'target/*.war'

}

stage('tomcat') {

steps {

}

Here is the screen shot script need add click save the job

Step 12. Save job and Build it is completed Successfully, with stage view you see nexus added file transfer to tomcat

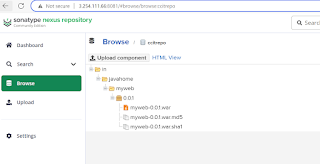

Step13: See here below screen shot , nexus repo .war file deployed successfully, in the nexus pipeline script, for difference first example maven to tomcat, second example maven ->nexus->tomcat hostname change "ccitwebsite1"

Step14: See below Application path newly came /ccitwebsite1

Step2: After click, web host page opened successfully.

--Thanks

Using S3 Bucket instead of Nexus High-end server paid not free-tier

Step1: Using I am Service create one user jenkins-s3-user, Add policy "AmazonS3FullAccess" and create

Step2:Add Security key for the user ,download for better

Step3:

Source :Jenkin Server already Java,Git and Jenkis installed started Jenkin service

Create one simple S3 bucket in aws >

Name Bucket :ccitnexusbucket

Bucket type :General Purpose

Object ownership : ASLs disabled(recommended) default

Created one bucket

Step4:

Jenkins Dashboard → Manage Jenkins →plugins >Available plugins

S3 publisher, (optional Stage viewer)

Step5: After Added Plugins , Need to attach Iam user( i.e jenkins-s3-user Download Accesskey ) to S3 profile below navigation

Jenkins Dashboard → Manage Jenkins >System

Profile :aws-profile (given name)

Access key:XXXXXX(which you have download IAM User )

Secret key:XXXXX

Click Save

Step6: For Generate Pipeline script use job Pipeline syntax

Sample step: General Build Step

Build Step :Publish Artifacts to S3 Bucket

S3 Profile : aws-profile (it came automatically which you have add profile above step)

Source :target/*.war (Jenkins sever where you artifacts)

Destination bucket: ccitnexusbucket

Bucket Region : eu-west-1 (where you bucket region)

Click Generate pipeline script ,copy the test

Step7:Genkins > Create one job pipeline job Click save and Build

pipeline {

agent any

tools{

maven 'ccit-mvn'

}

stages {

stage('git') {

steps {

git 'https://github.com/cloudcomputingintelugu/ccitwebsite-java.git'

}

stage('build') {

steps {

sh 'mvn clean package'

}

stage('Upload to S3') {

steps {

s3Upload consoleLogLevel: 'INFO', dontSetBuildResultOnFailure: false, dontWaitForConcurrentBuildCompletion: false, entries: [[bucket: 'ccitnexusbucket', excludedFile: '', flatten: false, gzipFiles: false, keepForever: false, managedArtifacts: false, noUploadOnFailure: false, selectedRegion: 'eu-west-1', showDirectlyInBrowser: false, sourceFile: 'target/*.war', storageClass: 'STANDARD', uploadFromSlave: false, useServerSideEncryption: false]], pluginFailureResultConstraint: 'FAILURE', profileName: 'aws-profile', userMetadata: []

}

Step8: Build success, See below S3 upload also success

Step9:See below s3 ccitnexusbucket artifacts uploaded successfully.

Step10:

Create one instance >tomcat Server > execute below script root

tomcat.sh script

yum install java-17-amazon-corretto -y

wget https://dlcdn.apache.org/tomcat/tomcat-11/v11.0.7/bin/apache-tomcat-11.0.7.tar.gz

(This is not final one you main url check latest version and download)

tar -zxvf apache-tomcat-11.0.7.tar.gz

sed -i '56 a\<role rolename="manager-gui"/>' apache-tomcat-11.0.7/conf/tomcat-users.xml

sed -i '57 a\<role rolename="manager-script"/>' apache-tomcat-11.0.7/conf/tomcat-users.xml

sed -i '58 a\<user username="tomcat" password="ccit123" roles="manager-gui, manager-script"/>' apache-tomcat-11.0.7/conf/tomcat-users.xml

sed -i '59 a\</tomcat-users>' apache-tomcat-11.0.7/conf/tomcat-users.xml

sed -i '56d' apache-tomcat-11.0.7/conf/tomcat-users.xml

sed -i '21d' apache-tomcat-11.0.7/webapps/manager/META-INF/context.xml

sed -i '22d' apache-tomcat-11.0.7/webapps/manager/META-INF/context.xml

sh apache-tomcat-11.0.7/bin/startup.sh

Step11: login tomcate public ip

Step12:

Another way to pipeline syntax script

Simple Step : Deployment war/ear to container

Deploy War/Ear files :target/*war

Context patch :ccitwebsite (give any name)

Contaner : Tomcat :take latest version

Credential: tomat/ccit123 (which is you given script)

Tomcat URL : http://18.201.159.187:8080/ (tomcat url public ip)

deploy adapters: [tomcat9(alternativeDeploymentContext: '', credentialsId: 'ff93c1a6-d180-4658-a61f-e43c790065a5', path: '', url: 'http://18.201.159.187:8080/')], contextPath: 'ccitwebsite', war: 'target/*.war'

stage('tomcat') {

steps {

}

Full script : Step7 add above script

Step13: Build Completed Successfully

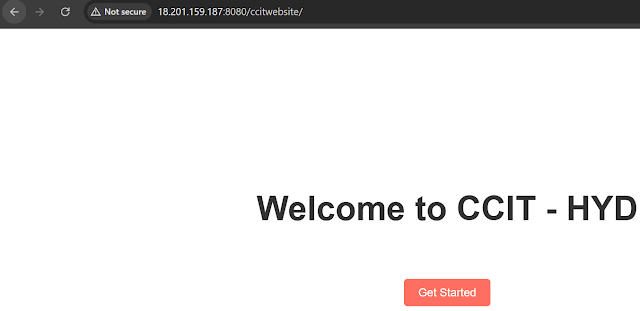

Step14: Webpage hosted in tomcat

Step15: Web hostname open successfully

--Thanks

Tuesday, May 20, 2025

Jenkins part8

Class 28th Jenkins May 20th

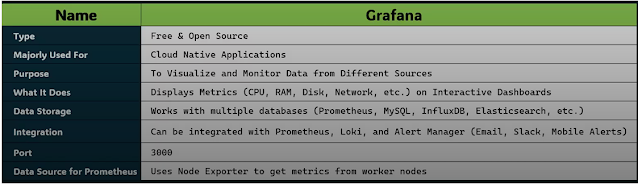

Prometheus and Grafana

Prometheus and Grafana are two widely used tools for monitoring and Observability in cloud-native environments

Prometheus main query based ( monitoring cpu memory,network bits it get the data from nodes and transferred to Grafana there we can see visually,graphic format)

Prometheus and Grafana both are open source monitoring and alerting toolkit originally developed by soundcloud and is now part of the cloud native computing foundation(CNCF)

Features:

Time-series database: Stores metrics as time-series data.

Pull-based metrics collection:Scrapes metrics from targets (applications, services )over HTTP

Powerful query language (PromQL):Allows flexible querying and data analysis.

Alerting:Integrated with Alert manager to send alerts via email,slack,pagerduty,etc.

Service discovery:Supports Kubernetes,Ec2,consul,and static Configurations.

Cloud Watch( This also monitor the health check of the server)
Cloud trail (This monitor complete account)
Prometheus default port 9090 and Grafana default port 3000 ,Prometheus collect data source of the server information Grafana with that data showing in Graph GUI
Grafana : Grafana Open source data visualization and monitoring tool used to display metrics from Prometheus and other data sources.
Features : Supports multiple data source:works with Prometheus,InfluxDB,Mysql ,AWS Cloud Watch ,Elasticsearch ,etc.
Rich Visualization Graphs,heatmaps,pie charts and dashboard
Alerting system :Triggers alerts when thresholds are breached.

Practical

Step1: Need to create the servers 3 one Prometheus ,2 for create worker1,worker2 , for understand two enough i have not create worker3

Created Three servers

Server1

[root@ip-10-0-2-7 ~]# hostnamectl set-hostname prometgrafa

[root@ip-10-0-2-7 ~]# exit

logout

[ec2-user@ip-10-0-2-7~]$ sudo -i

[root@prometgrafa ~]#

Server2

[ec2-user@ip-10-0-1-114 ~]$ sudo -i

[root@ip-10-0-1-114 ~]# hostnamectl set-hostname worker1

[root@ip-10-0-1-114 ~]# exit

logout

[ec2-user@ip-10-0-1-114 ~]$ sudo -i

Server3

[ec2-user@ip-10-0-0-39 ~]$ sudo -i

[root@ip-10-0-0-39 ~]# hostnamectl set-hostname worker2

[root@ip-10-0-0-39 ~]# exit

logout

[root@worker2~]#

Step2: Copy past prometgrafa server and execute

https://github.com/cloudcomputingintelugu/ccit-scripts/blob/main/promgraf.sh

[ec2-user@ip-10-0-2-7 ~]$ sudo -i

[root@worker2 ~]# vi pandg.sh

[root@worker2 ~]# sh pandg.sh

Executed Successfully

Step3: for the script promgraf.sh taken from #NODEEXPORTER line 79 upto end copy

run in worker1 and worker2

[root@worker1 ~]# vi node.sh

[root@worker1 ~]# sh node.sh

[root@worker2 ~]# vi node.sh

[root@worker2 ~]# sh node.sh

Executed Successfully

Step4: Need to check Prometheus and Grafana server how to configure using public ip

Select the status go to target: first endpoint state automatically up because it is same server,remaing to down due to it is different servers need to configure the node

Step5:As given script prometgrafa server below path need edit the hosts file add public ip of the two worker servers and save
example script:
#3.101.56.72 worker-1
#54.193.223.22 worker-2

#sudo vim /etc/hosts

[root@prometgrafa ~]# sudo vim /etc/hosts
[root@prometgrafa ~]# cat /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost6 localhost6.localdomain6
52.212.144.119 worker-1
108.129.132.47 worker-2

After refresh ,worker1,worker2 also went up now.

See here below inbuilt some query there you can select cpu take any and execute ,you see below ouput

get the raw data from three servers ,If you more GUI dashboard level you need send the data

better view in Grafana.

cpu

Memory

Above Grafana also included ,if you are facing issue ,Please use below command execute the server

[root@prometgrafa ~]#wget https://dl.grafana.com/oss/release/grafana-10.3.3-1.x86_64.rpm

[root@prometgrafa ~]#sudo yum install grafana-10.3.3-1.x86_64.rpm -y

[root@prometgrafa ~]#ssudo systemctl daemon-reexec

[root@prometgrafa ~]#ssudo systemctl start grafana-server

[root@prometgrafa ~]#ssudo systemctl enable grafana-server

[root@prometgrafa ~]#ssudo systemctl status grafana-server

Grafana default port 3000, default username and password admin/ admin

Step6: Click add new dashboard add visualization ,need click configure a new data source

our Source is Prometheus ,See below we have many data source options

You need give your Prometheus url and click save & test

Step7: Now configure this to dashboard if you have knowledge create your own dashboard ,elase we can use some existing templates 1860 import dashboard click load and select you data source prometheus and click import

This prometheus local exist server GUI

This for Work1 healthchecks

--Thanks

Communicate to Post Build status to slack

Post Build actions in Jenkins communicate to slack Messager channel

Step1: Launch one instance created

Step2: Create one slack account sign-in with Gmail account Click Create workspace

Select start with free

https://slack.com/

Give Workspace name and username click next ,if you want add you team members also we can add

as of now not added

Step3: Create new Channel >Blank Channel > radio button Public give channel name

#ccitbuildstatus

Now Slack channel ready

Step4: Which created Instance install jenkins git and java in the server

[ec2-user@ip-10-0-3-187 ~]$ sudo -i

[root@ip-10-0-3-187 ~]# yum install -y java-17-amazon-corretto-devel git

[root@ip-10-0-3-187 ~]#sudo wget -O /etc/yum.repos.d/jenkins.repo \

    https://pkg.jenkins.io/redhat-stable/jenkins.repo

[root@ip-10-0-3-187 ~]#
sudo rpm --import https://pkg.jenkins.io/redhat-stable/jenkins.io-2023.key
[root@ip-10-0-3-187 ~]# sudo yum install jenkins
click y

[root@ip-10-0-3-187  ~]# systemctl status jenkins
[root@ip-10-0-3-187  ~]# systemctl start jenkins
[root@ip-10-0-3-187  ~]# cd /var/lib/jenkins

[root@ip-10-0-3-187 jenkins]# ls -lrt

total 20

drwxr-xr-x 3 jenkins jenkins 21 May 22 09:16 %C

-rw-r--r-- 1 jenkins jenkins 64 May 22 09:16 secret.key

-rw-r--r-- 1 jenkins jenkins 0 May 22 09:16 secret.key.not-so-secret

drwxr-xr-x 2 jenkins jenkins 6 May 22 09:16 plugins

drwxr-xr-x 2 jenkins jenkins 6 May 22 09:16 jobs

-rw-r--r-- 1 jenkins jenkins 156 May 22 09:16 hudson.model.UpdateCenter.xml

-rw-r--r-- 1 jenkins jenkins 171 May 22 09:16 jenkins.telemetry.Correlator.xml

drwxr-xr-x 2 jenkins jenkins 24 May 22 09:16 userContent

-rw-r--r-- 1 jenkins jenkins 1037 May 22 09:16 nodeMonitors.xml

drwxr-xr-x 3 jenkins jenkins 56 May 22 09:16 users

drwx------ 2 jenkins jenkins 91 May 22 09:16 secrets

-rw-r--r-- 1 jenkins jenkins 1660 May 22 09:16 config.xml

drwxr-xr-x 2 jenkins jenkins 67 May 22 09:16 updates

[root@ip-10-0-3-187 ~]# cd /var/lib/jenkins/secrets/

[root@ip-10-0-3-187 secrets]# cat initialAdminPassword

Step4: http://3.249.93.238:8080/ login with initialAdminPassword password give admin password

create job and build

Step5:After build Jenkin folder

[root@ip-10-0-3-187 secrets]# cd /var/lib/jenkins/

[root@ip-10-0-3-187 jenkins]# ls -lrt

total 52

drwxr-xr-x 3 jenkins jenkins 21 May 22 09:16 %C

-rw-r--r-- 1 jenkins jenkins 64 May 22 09:16 secret.key

-rw-r--r-- 1 jenkins jenkins 0 May 22 09:16 secret.key.not-so-secret

-rw-r--r-- 1 jenkins jenkins 156 May 22 09:16 hudson.model.UpdateCenter.xml

-rw-r--r-- 1 jenkins jenkins 171 May 22 09:16 jenkins.telemetry.Correlator.xml

drwxr-xr-x 2 jenkins jenkins 24 May 22 09:16 userContent

-rw-r--r-- 1 jenkins jenkins 1037 May 22 09:16 nodeMonitors.xml

-rw-r--r-- 1 jenkins jenkins 1660 May 22 09:16 config.xml

drwxr-xr-x 90 jenkins jenkins 8192 May 22 09:36 plugins

-rw------- 1 jenkins jenkins 1680 May 22 09:36 identity.key.enc

drwxr-xr-x 2 jenkins jenkins 149 May 22 09:36 updates

-rw-r--r-- 1 jenkins jenkins 370 May 22 09:36 hudson.plugins.git.GitTool.xml

drwxr-xr-x 2 jenkins jenkins 32 May 22 09:36 logs

drwxr-xr-x 3 jenkins jenkins 56 May 22 09:36 users

-rw-r--r-- 1 jenkins jenkins 182 May 22 09:37 jenkins.model.JenkinsLocationConfiguration.xml

-rw-r--r-- 1 jenkins jenkins 7 May 22 09:37 jenkins.install.InstallUtil.lastExecVersion

-rw-r--r-- 1 jenkins jenkins 7 May 22 09:37 jenkins.install.UpgradeWizard.state

drwxr-xr-x 3 jenkins jenkins 22 May 22 09:37 jobs

drwxr-xr-x 3 jenkins jenkins 22 May 22 09:37 workspace

drwx------ 2 jenkins jenkins 237 May 22 09:37 secrets

Step6: We need install the plugin in Jenkins

Dashboard >manage Jenkins >Plugins >Available Plugins >type slack

Choose Slack Notification click install After installed successfully.

Step7:Need to configure slack

Manage Jenkins >System

here we need give workspace credential and channel information need to add

Prior to that We need configure Jenkins in slack

Step8:Type Jenkins CI and the Click add to Slack

Step9: add which channel to communicate

Step10: After click Add Jenkins CI Integration ,they will give instructions please do follow

Step11: Team Sub domain name take and configured in jenkins system configuration

ccit-epl5538

Click Add credentials take the Integration token credential ID iLba4X9G2sX2T3AZYPgeLcPR

Step12:
After added secret text select credentials secret text and then click save ,With out that build will alert will not go so need remember this

Step13:

Create one New job

>New item > name : ccitpipelinejob >Select Pipleline option click Ok

pipeline {

agent any

stages {

stage('Code') {

steps {

echo 'This is Code stage'

}

stage('Dev') {

steps {

echo 'This is Dev stage'

}

stage('Test') {

steps {

echo 'This is Test stage'

}

stage('Deploy') {

steps {

echo 'This is Deplyoment stage'

}

Build Success All stage below, but we need setup Post build setup for slack alert

Step14:

Here below click the job and select the option pipline script syntax , given your slack channel name ccitbuildstatus and Click Generate pipeline script, copy generate the text

Step15:After copy the above text your job pipline script add below script and save and Build click the Job

pipeline {

agent any

stages {

stage('Code') {

steps {

echo 'This is Code stage'

}

stage('Dev') {

steps {

echo 'This is Dev stage'

}

stage('Test') {

steps {

echo 'This is Test stage'

}

stage('Deploy') {

steps {

echo 'This is Deplyoment stage'

}

post {

success{

slackSend channel: 'ccitbuildstatus', message: 'Build Success !...', tokenCredentialId: '3d9bccaf-39e3-4455-b1a4-c4e6f620da31' }

failure{

slackSend channel: 'ccitbuildstatus', message: 'Build Failed !...', tokenCredentialId: '3d9bccaf-39e3-4455-b1a4-c4e6f620da31' }

}

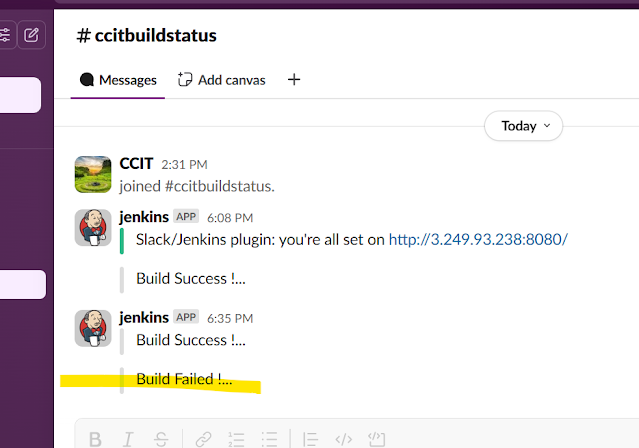

Step16:See Alert capture Build success , we will plan to do one some wrong changes make build failed ,will see build failed alert received or not

Build Failed

Stage code script remove o ech 'This is Code stage' , so it was failed in code stage alert also received in the slacked Failed Build

--Thanks
